ATR color zones with volume radar [LM]

26 ก.ย. 2020

Hello Guys,


I would like to introduce you the ATR color zones with volume radar indicator. It's a fork of GlobalMarketSignals "GMS: Mr. Yen's Color Zone" shout-out to him.

I have enriched it -> that zones are calculated based on the ATR and percentages as described below and volume radar on candle bars. You can select from which timeframe color zones are calculated.

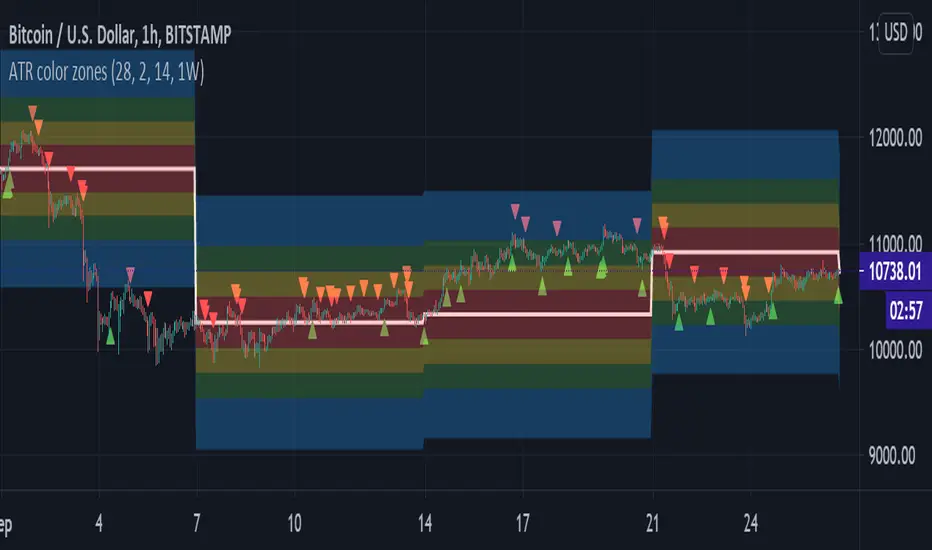

Zones:

white line is the previous period close
red zone = +/- 20% ATR of previous period
yellow zone = +/- 40% ATR of previous period
green zone = +/- 60% ATR of previous period
blue zone = +/- 100% ATR of previous period

Volume radar:

lime = above volume MA average multiplied by multiplier up bar
maroon = above volume MA average multiplied by multiplier down bar
black = volume is decreasing but is not below half of volume MA
navy = volume is decreasing and is below half of volume MA

markers are shown when volume is increasing two consecutive candle in row in direction of the candle

Any suggestions are welcomed

26 ก.ย. 2020

เอกสารเผยแพร่

fixed naming

26 ก.ย. 2020

เอกสารเผยแพร่

fixed timeframe
