Auto Range Detector [QuantAlgo]🟢 Overview
The Auto Range Detector is a structural analysis tool built for traders who work around consolidation. It automatically scans every bar across multiple window sizes, tests each candidate against a set of independent structure filters, and draws a box where price rotated between two boundaries and stayed contained by them. Every stage is volatility normalized against the symbol's own history, so one configuration behaves consistently on a five minute crypto chart and a daily equity chart alike. Whether you fade the edges, trade the resolution, or simply want the ranges on your chart drawn the way you would draw them by hand, the indicator turns raw price into confirmed structures, marked breakouts, and a definition of "range" that you have complete control over on any asset and any interval.
🟢 How It Works
The indicator tests up to three window sizes on every bar: the base scan length, double it, and triple it. Each window places two boundaries using the method you choose, measures the band height, and ranks that height against its own history on the symbol and interval, so the volatility gate reads as a percentile of what the market normally produces. The window then has to pass four independent structure tests: enough midline crossings per bar to establish two sided rotation, enough bars reaching each boundary, a regression slope flat enough to show a stable mean, and enough closes held between the boundaries. The longest window that clears every test defines the range.
Once a structure qualifies, the left edge walks backwards through earlier history for as long as price stayed inside the band, and lands only on a bar held within the boundaries wick and all, so a box begins on a candle that belonged to the structure. The range stays provisional until it has spanned a minimum number of bars, and a provisional structure that breaks is cleared without a marker, leaving only structures that held on the chart. A break is confirmed on a close or a wick beyond the boundary, with an ATR buffer that filters marginal clears.
🟢 Key Features
▶ Multi-Scale Detection
The scan tests up to three window sizes on every bar: the base length, double it, and triple it, with the longest qualifying window defining the range. Boundary Basis then decides where the two edges sit and how range height is measured. Percentile band trims outlying wicks so no single spike defines the box, with the percentile itself adjustable. Absolute extremes places the edges on the extreme wicks and measures peak to trough. Body extremes works from opens and closes only, which suits instruments with erratic wicks such as thin crypto pairs. Signal Timing governs whether everything waits for the bar to close or evaluates the forming bar, and ATR Length sets the volatility unit every distance in the script is expressed in.
▶ Structure Filters
Five settings decide whether a candidate window is a range. Compression Percentile is the volatility gate, ranking band height against the symbol's own history so the threshold means the same thing on any instrument. Min Rotation Rate requires midline crossings per bar, which is what separates a genuine range from a reversal that happens to span the same distance. Min Boundary Touches requires both sides to be visited more than once, so a single spike high paired with a single spike low does not qualify, with Touch Definition and Touch Tolerance controlling what registers as a visit. Max Drift limits how far the mean of the window may tilt. Min Containment requires a share of closes to sit between the boundaries, rejecting structures where price only passed through the zone. Every test has its own control, so the definition can be set to tightly held rectangles or to looser rotational structures.
▶ Range Behavior
Range Anchoring decides where the left edge lands once a structure qualifies. Scan window only draws the box across the window the filters evaluated. Extend to containment walks the edge backwards through earlier bars that stayed inside the band, up to an adjustable ceiling, so the box covers the full consolidation. Minimum Range Bars holds a new structure provisional until it has run long enough, and a provisional structure that breaks is cleared without a marker. Absorb Overshoot lets a boundary take in a marginal wick rather than closing the box on it. Break Confirmation and Breakout Buffer decide what ends the range, on a close or a wick, and how far past the boundary price must clear. Cooldown Bars and Max Range Age govern what happens after a range resolves.
▶ Deviation Merging
Optional handling for a break that closes back inside the range. With this enabled, the broken structure is held open briefly and a close back between the boundaries revives it: the box resumes from its original left edge, the breakout marker is withdrawn, and the excursion is marked at its extreme, leaving one continuous structure with a failed break inside it rather than a breakout followed by a fresh box over the same price. Left disabled, every break is final.
▶ Range Visualization
Each structure is drawn as a gradient shaded box that fades from the boundaries toward equilibrium, with an optional midpoint line and quartile levels marking where a rotation is already extended. A live tag reports whether the structure is forming or confirmed, how many bars it has held, and its height as a percentage of price. Breakout markers print below the bar on an upside break and above it on a downside break.
▶ Built-in Alerts
Ready-made alert conditions fire when a new range is detected, when one breaks to the upside or downside, on any range break, and when a failed break returns price inside the structure.
▶ Color Presets
Six presets (Classic, Aqua, Cosmic, Cyber, Neon, Custom) drive the bullish and bearish pair, with the range color held separate so a live structure always reads as neutral against whichever pair is active. Custom mode exposes individual color pickers. Every border, line, fill, and label is contrast corrected against the chart background automatically, so a color close to your background lifts far enough to read while shading stays light enough to keep price action visible.
อินดิเคเตอร์
Sequence Snap | RSI-Confirmed Reversal ScalperExplanation
This strategy hunts for a specific price-action pattern: a candle that closes against the prevailing short-term move, followed by a run of consecutive candles pushing hard in the opposite direction — each one holding above (or below) the reversal candle's extreme. Once that shape completes, RSI is checked to confirm real momentum is behind the move rather than just noise. Entries use a single fixed stop (placed at the reversal candle's low/high) and a single fixed reward target defined as a multiple of that risk — no trailing, no dynamic exits, so every trade is comparably sized for easy backtesting analysis.
Features
Adjustable "run length" (2–5 candles) to control how strict the pattern is
A wobble-allowance setting so one weak candle in the run doesn't invalidate the whole setup
Optional RSI confirmation filter with separate floor/ceiling thresholds for longs and shorts
Long/short trades can be toggled independently
Fixed R-multiple take-profit (0.5R–2R) paired with a structural stop-loss
Dark dashboard showing live RSI, position status, and current settings
Background flash on the exact bar a signal fires, plus clean entry arrows
Tips
Test with the RSI filter both on and off — it may cut too many valid patterns depending on the instrument, so compare win rate/profit factor both ways before deciding.
Start with Wobble Allowance near 0 to match the strictest version of the pattern, then loosen gradually if it's not finding enough setups.
Warnings
This is a price-action pattern strategy, not a trend or oscillator strategy — its win rate and trade frequency will look very different from momentum or mean-reversion scripts, so don't compare metrics directly across strategy types.
Past backtest performance does not guarantee future results. Always forward-test on a paper account before risking real capital.
Fixed R-multiple exits mean the strategy needs a minimum win rate to be profitable after commission and slippage — check that math against your actual backtest numbers.
กลยุทธ์

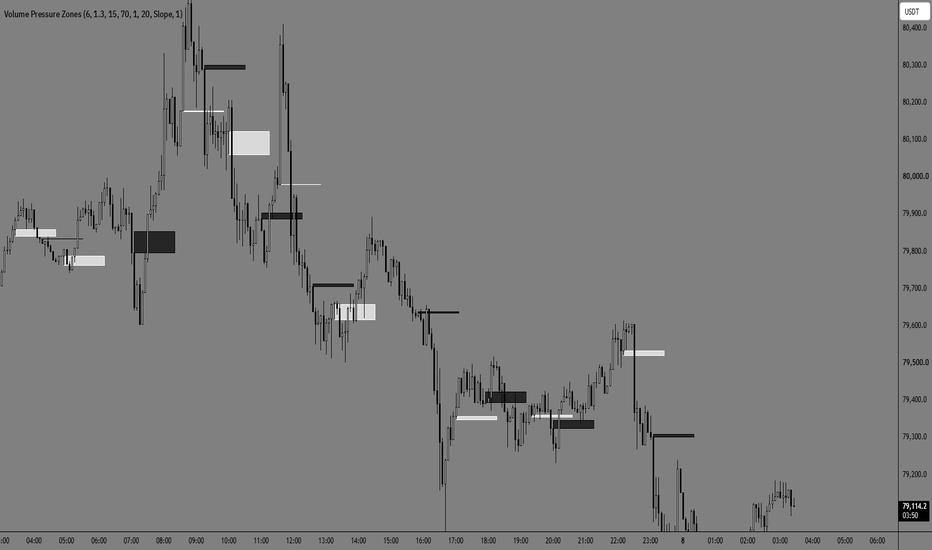

Volume Pressure ZonesThe Volume Pressure Zones indicator identifies areas of concentrated buying and selling pressure by analyzing intra-bar price action and volume.
Rather than relying purely on price structure, this script estimates the internal volume pressure behind price movements. It splits the volume of each candle into Buy and Sell components based on where the candle closes relative to its high-low range.
How it Works:
Pressure Calculation: The script tracks the cumulative Buy and Sell volumes over a specified lookback period (default 6) and compares them against the average volume.
Zone Projection: When the concentrated pressure exceeds a user-defined threshold (default 1.3), it projects a visual zone forward.
Buy Zones (White): Represent areas of concentrated buying pressure, potentially acting as support.
Sell Zones (Black): Represent areas of concentrated selling pressure, potentially acting as resistance.
Overlap Prevention: To maintain a clean and readable chart, the script prevents new boxes of the same type from overlapping. A new zone is drawn only after the previous zone's extension period has fully elapsed.
Settings:
Pressure Threshold: Adjusts the sensitivity of zone creation. A higher value requires a stronger concentration of volume to draw a box.
Zone Extension: Determines how many bars forward the support/resistance box is projected.
Moving Average (Optional): An optional EMA is included with slope-based color coding for trend context. This is hidden by default to keep the chart clean.
This indicator does not predict future price movements but provides a visual mapping of where significant volume pressure has recently occurred. It is best used alongside other contextual market analysis.
How to Use (Trading Strategies & Applications):
1. The Pullback & Retest Strategy
These zones represent areas where significant capital was committed. Rather than entering a trade immediately as the zone forms, wait for the initial move to play out and look for a pullback to the zone.
Bullish Setup: Wait for a White (Buy) zone to form and price to move higher. When the price retraces back into this white zone, look for bullish rejection (e.g., a pin bar or engulfing candle) to enter long.
Bearish Setup: Wait for a Black (Sell) zone to form and price to drop. Sell on the retracement back into the black zone, using it as a resistance ceiling.
2. Trend Alignment (Using the Optional MA)
To avoid trading against the dominant momentum, use the built-in Moving Average (or your own preferred trend filter) to select high-probability zones.
Enable the Moving Average in the settings.
If the price is trading above a rising MA, prioritize White (Buy) zones for long entries and ignore black zones.
If the price is trading below a falling MA, prioritize Black (Sell) zones for short entries and ignore white zones.
3. Dynamic Risk Management (Stop Loss & Take Profit)
The zones provide logical, volume-backed levels for managing your risk and targeting profits.
Stop Loss Placement: When taking a long position from a support area, place your stop loss just below the bottom edge of the current White (Buy) zone.
Take Profit Placement: If you are in a long position, use the nearest developing or existing Black (Sell) zone as a realistic take-profit target, as it represents historical selling pressure.
4. Breakout Validation
When the price approaches a previously established pressure zone, observe how volume and price behave. If the price easily breaks through a thick Black (Sell) zone with strong momentum, it indicates that the buyers have fully absorbed the historical selling pressure. This invalidated resistance zone often flips to become future support.
Disclaimer: Like all technical indicators, Volume Pressure Zones should not be used in isolation. It works best when combined with broader market structure analysis, price action, and proper risk management. อินดิเคเตอร์
Opening Range Breakout [ITA]🟠 OVERVIEW
Opening Range Breakout marks the high and low of the first minutes of the trading session, extends those boundaries forward, and flags the bar where price closes outside them. The range is built live as the session opens, tracking its running high and low, then locks once the opening period ends.
Once the range is set, the indicator measures its height and projects extension targets above and below it. Four range lengths are available, and the session open time and timezone are configurable so the tool works on any market rather than being fixed to a single exchange.
🟠 CONCEPTS
* Opening Range - The high and low established during the first minutes of the session. Represents the initial boundaries of agreement between buyers and sellers before the day develops.
* Range Lock - The moment the opening period ends and the boundaries stop updating. From that bar onward the levels extend forward unchanged.
* Extension Target - A projected level placed at a multiple of the range height above the range high or below the range low. Acts as a measured move reference rather than a prediction.
* Qualified Breakout - The first close outside the range in a given direction. Each direction is tracked independently and marked only once, so a session that breaks up, reverses and then breaks down shows both events without repeating either.
* Session Anchoring - The range window is evaluated in the selected timezone rather than the chart timezone, keeping it aligned to the actual market open regardless of the user's location.
🟠 FEATURES
* Selectable Range Length - Choose between 5, 15, 30 or 60 minute opening ranges.
* Live Range Building - The box tracks the running high and low as the opening period develops, then locks when it closes.
* Extension Targets - Projects two configurable multiples of the range height in both directions.
* Breakout Marking - Labels the first close outside the range in each direction.
* Breakout Alerts - Fires on upside and downside breaks independently.
🟠 HOW TO USE
* Match the range length to the instrument. Shorter ranges suit fast-moving markets and scalping, longer ranges suit index futures and higher-priced equities where the first minutes tend to be noisy.
* Set the session open time and timezone to your market. The default is 09:30 New York.
* Use the range boundaries as the reference for the session. Price holding inside them points to rotation, while a decisive close outside tends to set the tone for the rest of the day.
* Read the extension targets as measured moves. A tight opening range produces close targets, while a wide one produces targets that may take the full session to reach, which is itself useful when sizing expectations.
* Adjust Days to Display to keep the chart clean when reviewing several sessions of history.
🟠 CONCLUSION
Opening Range Breakout combines automatic range detection, forward-extending boundaries, and range-based extension targets in a single tool. It removes the manual work of marking the opening range each session while keeping the framework configurable enough to apply across different markets and session times. อินดิเคเตอร์
Momentum Sequence Strategy+ [Herman]Momentum Sequence Strategy is an open-source, rules-based price-action strategy designed to test momentum continuation following a defined candle sequence.
The strategy does not use moving averages, oscillators, volume indicators, or higher-timeframe data. Its signals are derived entirely from the relationship between consecutive OHLC candles.
The objective is to identify situations where an initial candle establishes a protected price extreme and is followed by a sequence of candles showing consistent momentum in the opposite direction.
How the strategy works
The model begins with a Main Candle, followed by a user-defined number of consecutive confirmation candles.
The number of following candles can be set to:
2
3
4
5
The default setting is 5 following candles.
Long setup
A Long setup requires:
The Main Candle to be bearish.
Every following candle to be bullish.
The low of every following candle must remain strictly above the low of the Main Candle.
Each new bullish candle must close higher than the previous bullish candle.
No position may already be open.
In simplified form:
Bearish Main Candle -> Bullish -> Bullish -> ... -> Long
The low of the Main Candle acts as the invalidation level for the sequence.
Short setup
The Short setup is the exact inverse of the Long setup.
A Short setup requires:
The Main Candle to be bullish.
Every following candle to be bearish.
The high of every following candle must remain strictly below the high of the Main Candle.
Each new bearish candle must close lower than the previous bearish candle.
No position may already be open.
In simplified form:
Bullish Main Candle -> Bearish -> Bearish -> ... -> Short
The high of the Main Candle acts as the invalidation level.
Long and Short trading can be enabled or disabled independently.
By default:
Long Trades: ON
Short Trades: OFF
The strategy allows only one open position at a time.
Stop Loss
For Long trades, the Stop Loss is placed at the low of the Main bearish Candle.
For Short trades, the Stop Loss is placed at the high of the Main bullish Candle.
This means the candle that begins the sequence defines the structural invalidation point of the trade.
Take Profit
The strategy uses configurable R-based targets:
0.5R / 1R / 1.5R / 2R
The default setting is 1.5R.
For a Long setup, risk is measured from the closing price of the final confirmation candle to the low of the Main Candle.
For a Short setup, risk is measured from the closing price of the final confirmation candle to the high of the Main Candle.
The selected R multiple is then applied to that distance to calculate the Take Profit level.
Important execution detail
The strategy identifies a completed sequence using confirmed candle data.
Under TradingView's standard historical strategy execution model, a market order generated after a confirmed bar will normally be filled on the next available tick, which is typically the open of the following bar.
The strategy calculates its R-based target using the close of the signal candle, rather than the eventual simulated market fill price.
Because of this, the selected 0.5R, 1R, 1.5R, or 2R setting represents the strategy's target calculation model and may not equal the exact realized risk-to-reward ratio measured from the simulated fill price. Gaps, market movement between bars, commissions, and slippage can further affect actual results.
Visuals
The strategy can display:
Long setup markers
Short setup markers
Active Stop Loss
Active Take Profit
A configurable statistics/settings table
The table displays the currently selected Take Profit, sequence length, and enabled trade directions.
Default configuration
The default script inputs are:
Following Candles: 5
Take Profit: 1.5R
Long Trades: ON
Short Trades: OFF
Entry Signals: ON
Stop Loss / Take Profit display: ON
These defaults are provided as a starting configuration for research and are not presented as optimized parameters for any particular market or timeframe.
Users are encouraged to evaluate different configurations across sufficiently large datasets rather than selecting parameters solely because they produced favorable historical results.
Intended use and limitations
This is a mechanical backtesting strategy intended for studying a specific candle-sequence behavior.
It does not evaluate market regime, trend, volatility, liquidity, volume, news events, session context, support/resistance, or other discretionary information.
A valid sequence therefore does not imply that a profitable trade will follow.
Historical strategy results are hypothetical and do not predict future performance. Results can vary materially depending on symbol, timeframe, trading costs, liquidity, execution assumptions, and selected parameters.
The strategy should be evaluated on standard price-based candlestick charts. Non-standard chart types such as Heikin Ashi, Renko, Range, Kagi, or Point & Figure can produce strategy results that do not correspond to tradable market prices.
This version extends that foundation with:
Pine Script v6 implementation
Configurable 2-5 candle sequence length
Mirrored Short-side logic
Independent Long/Short controls
Configurable R-based profit targets
One-position-at-a-time execution
Stop Loss and Take Profit visualization
Configurable on-chart settings table
Expanded user controls and documentation
The script is published open-source so users can inspect the complete methodology, verify its behavior, modify it, and conduct their own research. กลยุทธ์
อินดิเคเตอร์

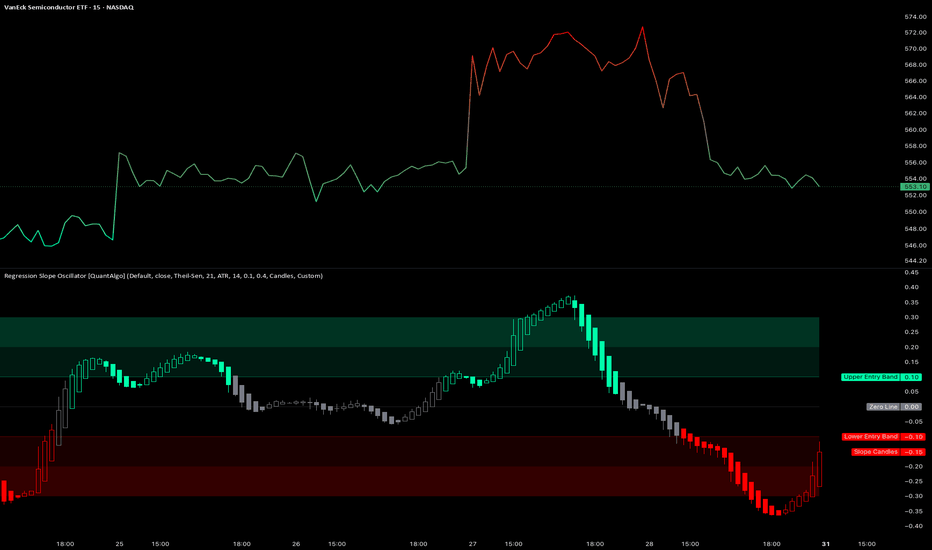

Regression Slope Oscillator [QuantAlgo]🟢 Overview
The Regression Slope Oscillator measures the rate of directional change in price using a robust regression estimator that resists outliers, then converts that slope into a scale free reading so a single threshold carries the same meaning across instruments and timeframes. Rather than fitting a least squares line, which a single spike or gap can pull off course, it takes the median of pairwise slopes inside a rolling window to produce a trend estimate that holds up through erratic data. A three state engine with separate entry and exit thresholds then translates the normalized slope into a bullish, bearish, or neutral regime, holding established states through pullbacks instead of flickering whenever the reading brushes the boundary.
🟢 How It Works
The indicator's core methodology lies in its combination of outlier resistant slope estimation and volatility relative normalization, where a trend regime is only established once the fitted rate of change clears a threshold expressed in units of the instrument's own volatility.
First, the source is optionally moved into log space so the fitted slope becomes a proportional rate of change rather than an absolute one, keeping readings comparable across instruments at very different price levels and across histories where price has moved by an order of magnitude:
srcMid = useLog ? math.log(srcSafe) : srcInput
Then the slope is fitted across the window using a robust estimator rather than ordinary least squares, which has an effective breakdown point of zero and lets a single gap or liquidation wick tilt the fit for the entire window. Theil-Sen takes the median of every pairwise slope inside the window, tolerating roughly 29 percent contaminated data while staying close to a least squares fit on clean data:
for i = 0 to length - 2 by 1
for j = i + 1 to length - 1 by 1
array.push(slopes, (source - source ) / (j - i))
array.median(slopes)
Repeated Median nests the same idea, taking a median of pairwise slopes anchored on each bar and then a median of those results, which lifts the breakdown point to 50 percent, the theoretical maximum, at several times the computational cost. Both estimators target the same underlying quantity, so switching between them changes robustness without shifting the scale.
The raw slope is then divided by a volatility unit to strip out the instrument's price scale and volatility regime, producing a reading that means the same thing on any chart:
normUnit = switch normMode
'ATR' => useLog ? atrUnit / srcSafe : atrUnit
'Stdev' => sdevUnit
=> useLog ? 0.01 : srcSafe / 100.0
slope = rawMid / normUnit
Each path is dimensionally self consistent with the log transform, so numerator and denominator always move together and the resulting reading stays dimensionless. In ATR mode a value of 0.10 means the trend is advancing at one tenth of an average true range per bar.
The normalized slope then drives a state engine where the level required to establish a regime and the level required to release it are deliberately different, creating a hysteresis band that suppresses boundary flicker:
if slope > entryTh
state := 1
else if slope < -entryTh
state := -1
else if useNeutral and state == 1 and slope < exitTh
state := 0
else if useNeutral and state == -1 and slope > -exitTh
state := 0
Finally, in Candles display mode the estimator runs two additional passes against the chart high and the chart low, building a synthetic OHLC series in slope space where the body spans the change in slope and the wicks reveal how far trend disperses across the bar range, with an optional Heikin-Ashi transform applied on top:
barHigh = math.max(slopeHigh, math.max(barOpen, barClose))
barLow = math.min(slopeLow, math.min(barOpen, barClose))
haClose = math.avg(barOpen, barHigh, barLow, barClose)
🟢 Signal Interpretation
▶ Bullish State (Oscillator Above the Upper Entry Band with Bullish Color)
The normalized slope has cleared the positive entry threshold, meaning price is advancing faster than the instrument's own recent volatility rather than simply drifting higher. Trend traders take the confirmation as a long entry and hold through pullbacks, since the state only releases once the slope retreats below the exit level rather than on every minor pause, and a reading that climbs deeper into the upper zones represents strengthening rather than a reason to exit. Mean reversion traders read the same plot for depth instead of direction. A reading sitting in the first zone is an ordinary trend and offers nothing to fade, but a push into the second or third upper zone means price is rising at two or three times the rate required for confirmation, which is statistically unusual and marks the region where an advance is most likely to decelerate and revert toward the band. The trigger for a fade is the turn back down out of the outer zone rather than arrival in it, because a steep slope can hold for a surprisingly long stretch in a genuine trend.
▶ Bearish State (Oscillator Below the Lower Entry Band with Bearish Color)
The normalized slope has cleared the negative entry threshold, confirming that price is declining at a rate meaningful relative to its own volatility. Trend traders use this for short entries or long exits and keep directional bias through corrective bounces that fail to reverse the underlying rate of change. Mean reversion traders again work from zone depth, treating a reading in the lower second or third zone as an accelerated decline that is stretched far enough for a bounce back toward the band to carry a favorable expected move. In either direction, a slope that decays back toward the entry band while price continues in the trend direction is an early rate of change divergence, giving mean reversion traders advance notice of exhaustion and trend traders a reason to tighten stops before the state formally releases.
▶ Neutral State (Oscillator Inside the Threshold Band with Neutral Color)
The oscillator has released into neutral, either because an established regime decayed back through its exit level or because the slope never cleared entry to begin with. This reading carries the same meaning for both styles, since price is neither trending quickly enough to follow nor stretched far enough to fade. Trend traders stand aside and watch for the compression that frequently precedes the next confirmed regime, while mean reversion traders treat the return into the band as a completed reversion and the natural place to close a fade, the move having exhausted itself by definition once the slope no longer clears the threshold.
🟢 Features
▶ Preconfigured Presets: Three optimized parameter sets tailored to different trading styles and timeframes, each configuring the slope window, normalization length, entry threshold, exit fraction, and normalization method together so the threshold always stays matched to the units it is measured in. "Default" balances noise filtering against responsiveness for swing trading on 4-hour and daily charts. "Fast Response" shortens the window and lowers the entry threshold to engage regimes early for intraday use on 5-minute to 1-hour charts, while a raised exit fraction releases them quickly. "Smooth Trend" lengthens the window and raises the entry threshold to produce few, high conviction regimes held through deep pullbacks, suited to position trading on daily and weekly charts.
▶ Built-in Alerts: Six alert conditions plus a dynamic alert message enable automated monitoring of regime transitions without constant chart observation. "Bullish State" and "Bearish State" trigger on first confirmation of a directional regime, "Neutral State" fires when a directional regime is released, and "Any State Change" provides a combined alert covering all transitions through a single setup. "Bullish Zero Cross" and "Bearish Zero Cross" track the moment the slope changes sign, offering an earlier and more sensitive trigger than threshold confirmation.
▶ Visual Customization: A Candles or Line display toggle switches between the full synthetic slope candle series and a single plotted value for a lighter, cleaner presentation. In Candles mode, an optional Heikin-Ashi transform makes sustained trend phases visually contiguous, and hollow up candles layer bar direction on top of the regime color so momentum inside a state can be read at a glance, for example a filled bar within a bullish phase indicating the slope eased on that bar. Graduated threshold zones fill at one, two, and three multiples of the entry threshold at progressively increasing transparency, giving an immediate sense of how far beyond confirmation the current reading sits.
Six color presets (Classic, Aqua, Cosmic, Cyber, Neon, plus Custom) accommodate different chart themes with coordinated bullish and bearish schemes applied consistently across every element.
อินดิเคเตอร์
MGC Precision Scalper (3-Min)Gold Scout is a confluence-based scalping tool built and tested specifically
for Micro Gold Futures (MGC) on the 3-minute chart. It does not repaint:
every signal is evaluated only on barstate.isconfirmed, so what you see in
history is exactly what would have printed live.
HOW IT WORKS
Trend structure
The script plots a moving-average stack: SMA 9, SMA 20, EMA 65, EMA 86, and
SMA 200, plus a session VWAP with standard-deviation bands. A trend ribbon
fills the gap between SMA 20 and EMA 86, tinted green when the full bullish
stack is aligned (SMA20 > EMA65 > EMA86 with price above SMA200), red for
the mirrored bearish stack, and neutral gray otherwise.
Trigger
A Buy is triggered the same bar RSI(14) crosses above a configurable level
(default 60); a Sell triggers on RSI crossing below a configurable level
(default 40). Each side is "armed" only after RSI has first retreated
through the 50 midline, and a configurable cooldown (default 6 bars)
blocks re-firing immediately after a signal — this prevents rapid-fire
duplicate signals during choppy RSI oscillation around the trigger level.
Signal quality grading (this is the core idea of the script)
Every signal is scored, not just fired blind:
- Premium: full MA stack alignment + price beyond SMA200 + strong RSI
momentum (>55 / <45 past the neutral line).
- Good: partial MA stack alignment + price on the correct side of SMA200.
- Basic: RSI cross valid, but weak or no moving-average confluence.
A "Minimum quality to show" input lets you hide Basic (and optionally
Good) signals so the chart only displays the setups you actually trade.
Noise filters
Two guards suppress low-quality environments before a signal can even
qualify:
- Chop filter: blocks signals when the SMA20-to-EMA86 gap is too small
relative to ATR(14), i.e. the MAs are tangled together.
- Extension filter: blocks entries when price is already stretched too
far from SMA20 relative to ATR — avoids chasing an exhausted move.
- RSI exhaustion filter: suppresses Buy when RSI is already deep
overbought (default 82) and Sell when deep oversold (default 18).
Session and volume
An optional session window (default 09:30–16:00 America/New_York, both
configurable) restricts signals to a chosen window, and an optional volume
filter requires above-average volume before a signal counts. Because gold
futures trade nearly around the clock, adjust the session input to match
the hours you actually trade (e.g. COMEX floor hours, or London/NY overlap)
or disable "Only signal inside session" if you want 24-hour coverage.
Dashboard
A top-right table summarizes live state: session status, trend bias, VWAP
position, RSI value, ribbon/chop status, and the current quality grade for
both sides, so you can read market context at a glance instead of
reverse-engineering it from the chart.
Alerts
Six alert conditions are included, split by side and quality grade
(Premium / Good / Basic), so you can build alert workflows that only
notify you for the grade of setup you care about.
HOW TO USE IT
This is a discretionary confluence tool, not a mechanical buy/sell system,
tuned for MGC on the 3-minute timeframe. Treat a Premium signal as
"multiple independent conditions agree," Good as "partial agreement," and
Basic as "RSI trigger only — verify manually before acting." Combine it
with your own risk management, market context, and a higher-timeframe view.
Backtest and forward-test on a simulated account before using it with real
capital.
Note: This script and its outputs are for informational and educational purposes
only. Nothing here is financial advice, and past signal behavior on
historical bars is not a guarantee of future results.
อินดิเคเตอร์

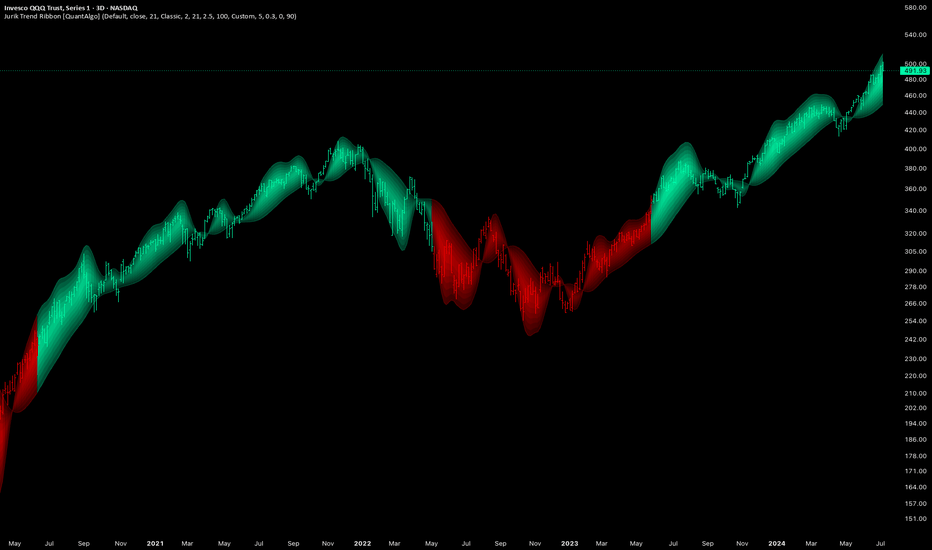

Jurik Trend Ribbon [QuantAlgo]🟢 Overview
The Jurik Trend Ribbon is a trend-following indicator built on a phase-compensated recursive filter rather than fixed-weight averages or price crossovers. It measures the residual between price and its own running estimate, then feeds a scaled portion of that residual back into the output to recover lag without the overshoot a shorter average introduces. Direction is anchored to a stored level that only advances once the filtered path clears a volatility deadband, helping traders separate sustained directional displacement from movement contained inside the prevailing range across every timeframe and market.
🟢 How It Works
The foundation of the indicator is a three-stage recursive cascade. A preliminary stage smooths the source, a detrending stage retains the residual price leaves behind against that estimate, and a final stage applies phase compensation before accumulating the result:
stage_one := inv_alpha * src + alpha * stage_one
detrend := (src - stage_one) * (1.0 - beta) + beta * detrend
phase_shift = stage_one + phase_ratio * detrend
stage_three := (phase_shift - result) * inv_alpha * inv_alpha + alpha * alpha * stage_three
result := result + stage_three
Two coefficients govern the cascade. Beta is fixed by the sampling Length and weights the detrending stage. Alpha is the smoothing coefficient, and under Classic mode it stays fixed at the Power setting throughout. Under Adaptive mode it is rescheduled on every bar from realized volatility measured against its own longer baseline:
dynamic_exp = math.pow(volty_ratio, volty_exp)
alpha = math.pow(beta, dynamic_exp)
Because beta is less than one, a larger exponent produces a smaller alpha and a faster filter, so the cascade tracks more closely as volatility expands and settles as it contracts. Classic holds a constant response that changes only with Length, while Adaptive shifts its response with the regime and will register state changes more readily at the same envelope width.
Direction is not read from the filter's slope. A stored level tracks the filtered path at a fixed distance in ATR units and only steps when the path clears it:
if upper_bound < ratchet
ratchet := upper_bound
trend_dir := -1
else if lower_bound > ratchet
ratchet := lower_bound
trend_dir := 1
Because that level rests a full deadband away from the filter, reversing direction requires the path to travel twice that distance, roughly three ATR at default settings. The level holds still through movement contained inside the envelope and commits only once displacement clears it outright, so the state persists through pullbacks rather than resetting on every fluctuation in the filter.
🟢 Signal Interpretation
▶ Bullish Trend (Green): When the filtered path clears the lower edge of the envelope, the stored level steps upward and the indicator enters bullish mode with green coloring applied across the ribbon and its layered bands. The level then trails beneath the path and only ever ratchets higher, so the reading persists through pullbacks that fail to displace price far enough to reach it. The transition into green marks a potential long/buy opportunity, with retracements toward the ribbon during an established bullish reading offering potential continuation entries.
▶ Bearish Trend (Red): When the filtered path clears the upper edge, the stored level steps downward and the indicator enters bearish mode with red coloring across all visual elements. The level trails above the path from that point and only tracks lower, requiring a full deadband of upward displacement before the state can flip back. The transition into red marks a potential short/sell opportunity, with rallies back toward the ribbon during an established bearish reading offering potential continuation entries on the downside.
🟢 Features
▶ Preconfigured Presets: Three parameter sets cover different trading approaches. "Default" targets swing trading on 1-hour and daily charts with a balanced filter and an envelope that holds direction through routine pullbacks. "Fast Response" shortens the filter, lightens the smoothing exponent, and tightens the envelope for intraday charts where the indicator needs to adapt to shorter-duration moves. "Smooth Trend" extends the filter, deepens the exponent, and widens the envelope for position trading on daily and weekly timeframes, where the cost of a false flip exceeds the cost of a delayed one. Selecting a preset overrides the individual filter and envelope inputs.
▶ Built-in Alerts: Three alert conditions cover all directional states. "Bullish Trend Signal" fires on the bar where the trend confirms bullish. "Bearish Trend Signal" fires on the bar where it confirms bearish. "Any Trend Change" combines both into a single condition for traders who want a unified notification regardless of direction. Because the filter reads its source on every tick, alerts should be set to Once Per Bar Close so they fire only on values that are final.
▶ Visual Customization: Six color presets (Classic, Aqua, Cosmic, Cyber, Neon, and Custom) apply coordinated bullish and bearish color schemes across the ribbon, its layered bands, and optional bar and background coloring. The ribbon renders the same cascade across its phase range rather than a single line, so it opens as price runs ahead of the smoothed estimate and closes as that gap narrows, with band opacity brightening and fading on the same measure, and a width multiplier scales the whole ribbon for presence on zoomed-out charts. Bar coloring tints price candles with the active trend color at a configurable transparency level, and background coloring extends the directional tint across the full chart pane.
อินดิเคเตอร์
RSI Bottom/Top Retest Scalper [josseliani]RSI Bottom/Top Retest Scalper is a short-term reversal tool built around a simple idea: the first RSI extreme is not always the best moment to act.
Instead, the indicator waits for RSI to leave the extreme area, cool down, form a second structured signal, and then waits for confirmation from price.
The logic is separated into two parts:
→ RSI setup
→ Price entry confirmation
How it works
For a bearish setup:
→ RSI first reaches the upper extreme area.
→ RSI cools down below the selected cooling level.
→ A second local RSI peak forms below the first peak.
→ The second RSI signal is confirmed when RSI starts turning down.
→ Price is then checked against the selected confirmation line.
→ A candle must place the required percentage of its body beyond that line.
→ That candle confirms and arms the setup.
→ The trade calculation starts from the OPEN of the next candle .
The bullish logic is the opposite: RSI forms an extreme bottom, rebounds, returns with a higher second bottom, and price must then confirm above the selected line.
RSI signals
The RSI setup is shown in two stages.
→ The circle marks the first RSI extreme.
→ The triangle marks the confirmed second RSI signal after the cooling and retest process.
These two markers belong to the RSI setup itself . They are not price-entry signals.
Price entry confirmation
After the second RSI signal, the script searches for price confirmation using the selected confirmation line.
A candle must place the required percentage of its body beyond that line.
This candle confirms and arms the setup , but it is not used as the entry candle.
The hollow entry arrow and trade calculation appear on the next candle , using that candle's open as the reference entry price.
So the sequence is:
→ 1 — Circle: first RSI extreme
→ 2 — Triangle: second RSI retest signal
→ 3 — Price confirmation and entry
Trade markup
When Trade Markup is enabled, the script automatically displays:
→ Stop Loss
→ 1R
→ 2R
The stop is normally derived from the price structure formed between the RSI retest signal and the price-confirmation event.
If a suitable structural stop cannot be established, or if the calculated risk is too small to be practical, the script can use an ATR-based fallback stop.
The 1R and 2R levels are calculated from the confirmed entry price and the resulting risk distance.
These levels are visual planning references. They are not predictions that price will necessarily reach a target.
Confirmation line
The confirmation line can be selected from:
→ EMA
→ SMA
→ WMA
→ RMA / SMMA
→ VWMA
→ HMA
→ DEMA
→ TEMA
→ ZLEMA
→ KAMA
→ Kalman
→ ALMA
→ Kijun
The default confirmation line is Kijun 34 .
The user can also select how much of the candle body must be beyond the confirmation line before the setup is considered confirmed.
How I use it
The default settings are tuned for 5-minute gold scalping .
I use Kijun 34 as the default confirmation line because I personally like this line a lot. I use it for both 5-minute and 15-minute scalping.
If you move to a lower timeframe, expect more signals, but also more noise. In that case, pay closer attention to entries and Stop Loss placement and consider using a shorter, faster confirmation line.
The script includes a wide selection of moving averages for scalpers, including some less conventional alternatives.
Besides Kijun, I also like ALMA for scalping. On the 1-minute chart I often use a shorter ALMA because it reacts faster, but this naturally creates a more aggressive trading style.
As a general approach:
→ Lower timeframe → shorter / faster confirmation line → more signals and more noise.
→ Higher timeframe → longer / slower confirmation line → fewer and more selective signals.
You can replace Kijun with EMA, ALMA or another available line and adjust its length for the market and timeframe you trade.
Main settings
→ RSI Length and Source
→ Upper and Lower Extreme Levels
→ Cooling Levels
→ Second Peak / Bottom Re-Entry Levels
→ Minimum Lower High / Higher Low Gap
→ Peak / Bottom Strength
→ Maximum Setup Search Window
→ Optional Midline Invalidation
→ Confirmation Line Type and Length
→ Required Body Beyond Line %
→ Entry Search Window
→ Signal Display
→ Trade Markup
→ RSI / Chart Highlighting
Important
Local RSI peaks and bottoms require confirmed bars on their right side before they can be identified.
For this reason, a second peak or bottom is marked only after its required confirmation is available.
The indicator separates the oscillator setup from price confirmation so that an RSI retest alone is not automatically treated as a trade entry.
The trade levels shown on the chart are generated from the detected setup and are intended for analysis and trade planning. They do not guarantee future performance.
Why the second signal?
The general idea of paying attention to a second oscillator signal has also been discussed in professional technical-analysis research.
Mohamed Ashraf, MFTA, CFTe, CETA presented The Stochastic Oscillator Second Signal through the International Federation of Technical Analysts (IFTA), examining the second oscillator signal as a distinct technical setup across different timeframes and market conditions.
This script does not reproduce that methodology. The referenced work uses the Slow Stochastic Oscillator, while this indicator applies its own RSI-based logic using extreme levels, cooling, second-peak / second-bottom structure and subsequent price confirmation.
Reference
IFTA Journal 2026 — The Stochastic Oscillator Second Signal
www.ifta.org อินดิเคเตอร์
Gaussian Filter Trend [QuantAlgo]🟢 Overview
The Gaussian Filter Trend passes price through a multi-pole Gaussian filter and holds the result inside an adaptive volatility deadband, producing a stepped trend path that advances only once a move has cleared the band. That band is sized by an Efficiency Ratio, tightening when price travels directionally and widening through chop, so the line tracks sustained moves and sits still through noise. Around that path, a star field orbits at two volatility-scaled radii that fade with distance, echoing the decay of the filter's own weighting and making the current trend distinctly recognizable at a glance on any instrument or timeframe.
🟢 How It Works
The indicator's core methodology combines two mechanisms: a cascaded Gaussian filter that smooths the source series, and an efficiency-driven deadband that governs when that smoothed value is permitted to move the trend line.
First, the selected source is passed through one to four cascaded single-pole stages. A beta term derived from the filter length and the pole count sets the smoothing coefficient. Because pole count enters that calculation directly, adding poles rescales the filter response rather than layering more averaging onto the same curve:
beta = (1 - math.cos(2 * math.pi / length)) / (math.pow(1.414, 2.0 / poleCount) - 1)
alpha = -beta + math.sqrt(beta * beta + 2 * beta)
Next, efficiency is measured by comparing net directional movement against the total distance traveled over the efficiency window. The ratio moves toward one when travel is more directional and toward zero when price covers ground without net progress. It is then smoothed, so the deadband width is less likely to shift sharply from one bar to the next:
efficiency_ratio = path_length == 0 ? 0.0 : net_move / path_length
smoothed_efficiency = ta.ema(efficiency_ratio, efficiency_smooth)
The smoothed reading blends between a wider chop multiplier and a tighter trend multiplier, and that result scales Average True Range into the deadband width. Higher readings pull the envelope in, so the line can follow a move more closely. Lower readings push it out, which is intended to reduce flips in conditions where they are more likely. Disabling Adaptive Width bypasses the blend and applies a single fixed multiplier:
width_multiplier = adaptive_width ? chop_multiplier + (trend_multiplier - chop_multiplier) * smoothed_efficiency : fixed_multiplier
trend_width = ta.atr(atr_length) * width_multiplier
Finally, the trend line carries its previous value forward and steps only when the envelope has moved past it. It drops when the upper band falls below the current level and rises when the lower band climbs above it, producing a stepped path rather than a continuous curve:
if upper_band < trend_line
trend_line := upper_band
if lower_band > trend_line
trend_line := lower_band
A persistent direction state records the last step and carries it through flat segments, so the line color, star field, bar coloring and alerts all read from the same value rather than diverging while the line is stationary. The star field orbits that path at a distance scaled to recent average bar range, spreading as ranges expand and drawing in as they compress, so the trend and the volatility it is being measured against are visible in one read.
🟢 Signal Interpretation
▶ Bullish Trend (Long/Buy): When the lower band climbs above the trend line, the line steps higher and the indicator enters bullish state. The trend line and star field switch to the bullish color. This condition identifies potential long or buy opportunities and remains active until the upper band falls below the line and confirms a bearish step.
▶ Bearish Trend (Short/Sell): When the upper band falls below the trend line, the line steps lower and the indicator enters bearish state. The visual elements switch to the bearish color. This condition identifies potential short or sell opportunities and holds until the lower band climbs above the line and confirms a bullish step.
▶ Flat Path (Hold): When price stays inside the deadband, neither band displaces the line and it holds level. Color does not change, so the prior state is carried rather than reconfirmed. Extended flat runs indicate the efficiency reading has widened the band against choppier conditions, and the state resolves only when one side of the envelope clears the line.
🟢 Features
▶ Preconfigured Presets: Three parameter sets cover a range of trading styles and timeframes. "Default" uses four poles over a fourteen bar window for a balanced configuration aimed at swing trading on 1-hour and daily charts. "Fast Response" shortens the filter length and drops to two poles for a tighter path on 5-minute to 1-hour charts, which may suit intraday work at the cost of more frequent steps in choppier conditions. "Smooth Trend" lengthens the filter and widens the chop multiplier for a steadier baseline on daily and weekly charts, aimed at position trading. Selecting any preset other than Default overrides every Gaussian Filter and Trend Width input beneath it.
▶ Built-in Alerts: Three alert conditions support automated monitoring of trend transitions. "Bullish Trend Signal" fires on the bar the direction state flips to bullish. "Bearish Trend Signal" fires on the bar it flips to bearish. "Any Trend Change" triggers on either transition for traders who want a single unified alert regardless of direction. All alerts include the exchange, ticker, and timeframe in the message for immediate context.
▶ Visual Customization: Six color presets, Custom, Classic, Aqua, Cosmic, Cyber, and Neon, provide coordinated bullish and bearish color pairings suited to different chart themes and personal preferences. Selecting Custom exposes independent color pickers for both states, alongside an adjustable neutral color used during the initial warmup before the first directional step. Line width is configurable from one for a minimal look up to eight for a heavier path, and the star field toggles separately from the line so either element can be displayed on its own. Optional bar coloring and background shading tint the candles and chart field with the active trend color at configurable transparency levels, reflecting the current state without reading the line directly.
อินดิเคเตอร์
อินดิเคเตอร์
อินดิเคเตอร์
อินดิเคเตอร์
RSI Divergence Indicator RSI Divergence Indicator — Enhanced
An enhanced RSI indicator combining traditional RSI divergence detection with flexible smoothing and a dynamic trend-color system.
This indicator is designed to give traders a cleaner view of momentum, trend direction, and divergence in one RSI pane.
Key Features
Dynamic RSI Trend Coloring
The RSI can automatically change color based on the relationship between a fast and slow RSI:
🟢 Green — Fast RSI is above Slow RSI, indicating bullish momentum.
🔴 Red — Fast RSI is below Slow RSI, indicating bearish momentum.
The feature can be turned on or off from the Divergence settings.
The Fast RSI and Slow RSI lengths are fully adjustable, with defaults of 5 and 14.
RSI Smoothing
Choose from several smoothing methods for the RSI:
None
SMA
SMA + Bollinger Bands
EMA
SMMA (RMA)
WMA
VWMA
The smoothing length is fully adjustable.
RSI Bollinger Bands
When SMA + Bollinger Bands is selected, Bollinger Bands are automatically displayed around the smoothed RSI.
The BB Standard Deviation is adjustable, allowing traders to customize the band width.
Multiple RSI Levels
The indicator includes five important RSI reference levels:
70 — Overbought
60 — Bullish momentum zone
50 — Midline / neutral
40 — Bearish momentum zone
30 — Oversold
The 40 and 60 levels provide additional context for identifying momentum shifts before RSI reaches traditional overbought or oversold levels.
Regular Divergence
Detects traditional divergence between price and RSI:
Bullish Divergence
Price makes a Lower Low
RSI makes a Higher Low
Bearish Divergence
Price makes a Higher High
RSI makes a Lower High
Hidden Divergence
Also identifies hidden divergence:
Hidden Bullish
Price makes a Higher Low
RSI makes a Lower Low
Hidden Bearish
Price makes a Lower High
RSI makes a Higher High
Customizable Divergence Detection
The pivot lookback and divergence range settings allow traders to adjust how sensitive the divergence detection is.
Alerts
Alert conditions are included for:
Regular Bullish Divergence
Hidden Bullish Divergence
Regular Bearish Divergence
Hidden Bearish Divergence
Why Use This Indicator?
The goal of this indicator is to combine several useful RSI tools into one clean and customizable package.
Instead of relying on RSI alone, traders can use:
RSI + Dynamic Momentum Color + Smoothing + Bollinger Bands + 40/60 Momentum Levels + Regular Divergence + Hidden Divergence
This provides multiple ways to assess momentum and potential trend changes without requiring several separate indicators.
Suggested Starting Settings
For a balanced starting point:
RSI Period: 14
Smoothing: None
Fast RSI: 5
Slow RSI: 14
Overbought: 70
Bullish momentum: 60
Midline: 50
Bearish momentum: 40
Oversold: 30
These are simply starting points and can be adjusted depending on the market, timeframe, and trading style.
Important
This indicator is intended as a technical analysis tool and should not be considered financial advice. Divergences and momentum signals can fail, particularly during strong trends or volatile market conditions. Always combine indicator signals with your own analysis and risk management. อินดิเคเตอร์
Prop Key Levels & Order Blocks - Buy Sell Signals with TP/SLA complete intraday trading suite built around one idea: the decision candle.
Instead of guessing where price might turn, the script marks the exact candles
where the market already made a decision, and then tells you what happened when
price came back to them.
Everything is evaluated on closed bars. Printed signals never move.
━━ WHAT IT DRAWS ━━
MAJOR KEY DETECTION
The origin candle of an impulsive displacement leg. Its body becomes a level
that extends to the right. Green for bullish decisions, red for bearish ones.
When price closes clean through a key, the level is greyed out — it failed, and
you can see that it failed. The detection level (1–100) sets how far price must
travel out of a candidate before it is accepted, so you can go from "every small
turn" to "only the moves that really expanded".
MAJOR ORDER BLOCKS
The last opposing candle before a structural break. Drawn as a box that survives
until price closes through it.
TREND DETECTION
A volatility-scaled trailing line under price, green while bullish and red while
bearish. It is the filter one of the two entry engines uses, and a weighted
component of the other.
ORDER POOL
Price levels that were rejected repeatedly and still hold unfilled resting
orders. Each pool is parked as an arrow at the right edge of the chart. You
decide what happens once price trades through one: remove it (the orders are
spent) or keep it dimmed, so you can still trade the reaction after the sweep.
SMART FVGS
Three-candle imbalances, filtered by a minimum size so the chart is not buried
under meaningless micro-gaps.
━━ THE ENTRY ENGINE ━━
Two independent algorithms, selectable in the settings.
PROP MODE — conservative. A signal needs the trend filter, a key level or order
block, and a confirmation candle to agree, and price must not already be
extended. Fewer trades, built for accounts where a handful of clean entries
beats constant activity.
AI-MODE — adaptive. Trend, momentum, key level, order block, pool sweep, fair
value gap and candle quality each contribute a weighted score. The engine fires
when the combined score clears a threshold you control, so it also takes the
reversals the conservative mode filters away.
Every entry comes with three take profits (Minor, Major, Highest) and a stop.
All four are expressed in volatility units — one unit is the ATR at the signal
bar — so the distances breathe with the market instead of being a fixed point
value that is wrong on half the days.
The reward box, the risk box and the projection line are drawn forward from the
entry, so one glance tells you whether the trade is worth taking. Hover any
signal badge to read why it fired and every price it produced.
━━ COOLDOWN ━━
After a signal, the engine mutes itself for a configurable number of bars. This
is what stops it from firing ten entries into the same move — the single
fastest way to run into a daily loss limit.
━━ DASHBOARDS ━━
A trade metrics table in the corner lists the live entry, all three targets, the
stop, the reward-to-risk and the cooldown state — the numbers you copy into your
order ticket.
A cockpit panel shows the live checklist (trend, key level, order block, pool
sweep, candle, cooldown), the running position, and a hit count across the whole
loaded history: how often each target was reached and how often the stop came
first.
━━ ALERTS ━━
Entry, take-profit hit and stop hit, as readable text or as a JSON object
carrying side, entry, all three targets, the stop and the reward-to-risk — the
format execution bridges expect.
━━ SETTINGS ━━
① Engine Control — strategy type, score threshold, cooldown, metrics table
② Trade Config — Minor / Major / Highest TP, SL, volatility unit
③ Insight Matrix — key detection and its level, order blocks, trend
④ Orderflow & Smart FVGs — order pool, touch count, tolerance, fill handling
⑤ Visuals — theme, candle colouring, boxes, price lines, panel, drawing budget
⑥ Alerts — what to fire and in which format
Every input carries a tooltip explaining what it does and what changes when you
move it.
━━ NOTES ━━
Designed for intraday work on index CFDs, gold and FX. The defaults were set up
on 1- to 15-minute charts; on higher timeframes raise the cooldown and the key
detection level.
This is an analysis tool, not financial advice. Past behaviour of any level or
signal says nothing about future results. Test any configuration on your own
instrument and timeframe before trading it. อินดิเคเตอร์
Market Structure Trend [QuantAlgo]🟢 Overview
The Market Structure Trend tracks the dominant directional bias of price by detecting confirmed swing highs and lows and maintaining an active structure level that only flips on a genuine break of that level. Rather than reacting to every minor high or low, it waits for a pivot to lock in after a defined number of bars on either side, then holds the resulting structure until price closes beyond it by an optional confirmation buffer. The result is a clean, non-repainting structure line that stays aligned with the prevailing market structure while filtering out stop hunts and marginal pokes through key levels. This makes the prevailing bias readable at a glance across any instrument or timeframe.
🟢 How It Works
The indicator begins by identifying pivot highs and pivot lows using the selected left and right structure bars. These pivots become the swing points that define market structure:
pivot_high = ta.pivothigh(high, left_bars, right_bars)
pivot_low = ta.pivotlow(low, left_bars, right_bars)
When a new pivot is confirmed, the corresponding swing high or swing low is updated. The active structure range is calculated as the absolute distance between the current swing high and swing low, and a confirmation buffer is derived as a percentage of that range:
structure_range = math.abs(swing_high - swing_low)
confirm_buffer = structure_range * buffer_pct / 100.0
Break levels are then offset by this buffer so that a downside break sits below the swing low and an upside break sits above the swing high. On every confirmed bar the script checks whether the chosen source (or the high or low when Break On Wick is enabled) has crossed the relevant break level. A successful cross reverses structure direction and reassigns the structure level to the opposite swing. If no break occurs, the structure level simply continues to track the swing consistent with the current direction.
Structure direction is seeded on the first ready bar by comparing price to the midpoint of the swing range, establishing an initial bias. From that point forward flips are gated strictly by confirmed breaks, so the state never repaints or changes mid-bar.
The structure level is drawn as a continuous line with a soft glow underneath. When radial layering is enabled, four concentric fills are drawn between the structure level and the bar midpoint, with transparency increasing outward. This produces a stepped radial field that visually maps distance from the active structure boundary rather than a single flat zone.
🟢 Signal Interpretation
▶ Bullish Structure (Structure Line at Swing Low with Bullish Color): When structure direction is bullish the line sits at the most recent confirmed swing low. Price is considered to remain in an uptrend structure as long as it stays above the buffered downside break level. The bullish state holds until a confirmed downside break occurs, at which point the line moves to the swing high and the color transitions.
▶ Bearish Structure (Structure Line at Swing High with Bearish Color): When structure direction is bearish the line sits at the most recent confirmed swing high. Price remains in a downtrend structure until a confirmed upside break flips the state. The bearish state persists through subsequent bars until an upside break is registered.
🟢 Features
▶ Preconfigured Presets: Three parameter sets cover a range of trading styles and timeframes. Default uses the manual Left Structure Bars, Right Structure Bars, and Confirmation Buffer values and is balanced for swing trading on 1-hour and daily charts. Fast Response shortens the structure legs for scalping and intraday use on 1-minute to 1-hour charts, registering minor swings so the structure trend flips earlier. Smooth Trend lengthens the legs for position trading on daily and weekly charts, tracking only major swings and holding through pullbacks with the confirmation buffer.
▶ Built-in Alerts: Three alert conditions support automated monitoring of structure flips. Bullish Structure Shift fires on the first bar that structure direction changes from bearish to bullish. Bearish Structure Shift fires on the opposite transition. Any Structure Shift triggers on either flip for traders who prefer a single unified alert. All messages include the exchange, ticker, and timeframe for immediate context.
▶ Visual Customization: Six color presets (Classic, Aqua, Cosmic, Cyber, Neon, and Custom) supply coordinated bullish and bearish color pairings suited to different chart themes. Selecting Custom unlocks independent color pickers for full manual control. Optional bar coloring tints each candle with the active structure color at a configurable transparency, and optional background coloring extends the same tint across the full chart pane. Radial layering, structure shift markers, and the structure line itself all inherit the active color pair so the entire visual system remains consistent.
อินดิเคเตอร์
Supertrend + RSI Filter (Advanced TP/SL)OverviewThe Supertrend + RSI Filter (Advanced TP/SL) is a comprehensive trend-following indicator designed for TradingView (Pine Script v5). It combines the trend-detection power of the Supertrend with a dynamic RSI Momentum Filter to eliminate low-probability setups in overbought or oversold conditions.Unlike standard indicators that clear historical lines upon new signals, this script implements a Pine Script v5 Custom Type & Array-based Position Management System. It tracks every trade independently, drawing dynamic Entry, Take Profit (TP), and Stop Loss (SL) lines with centered price labels. Position lines persist on the chart and are ONLY removed when price action officially hits the TP or SL level.
Comprehensive Feature List
Supertrend Trend Detection:
Utilizes Average True Range (ATR) to measure volatility and establish dynamic trailing stop bands for precise trend-direction identification.
RSI Momentum Filtering:
- Buy Filter: Suppresses BUY signals when RSI exceeds the overbought threshold (Default: >70) to prevent buying at local tops.
- Sell Filter: Suppresses SELL signals when RSI drops below the oversold threshold (Default: <30) to prevent selling at local bottoms.
Can be toggled ON/OFF in the settings menu.
Multi-Position Tracking Arrays:
- Employs custom data structures () stored in an to track multiple open trades concurrently. type Position array
- Persistent Lines: Entry (Solid Gray), Take Profit (Dashed Green), and Stop Loss (Dashed Red) lines remain on the chart through opposite trend changes until hit. - Centered Price Labels: Displays label text (, , ) dynamically anchored at the midpoint of each active position line. Entry: XTP: YSL: Z
- Individual Removal: When a specific trade hits its TP or SL target, its corresponding lines and labels are erased immediately without affecting other active trades.
On-Chart Performance Dashboard:
- Displays an updated summary table in the top-left corner of the chart.
- Metrics Included:
Win Rate (%): Percentage of closed trades hitting TP.
Total Trades: Total number of completed historical signals.
Winning & Losing Trades: Count of successful vs. failed setups.
Total Profit (Pips): Cumulative net profit/loss expressed in pips.
RSI Filter Status: Visual indicator showing whether the filter is active ( / ).ONOFF
Dynamic & Multi-Parameter Alert System:
Uses Pine Script’s function to output real-time formatted text messages containing key execution metrics: alert()
Symbol / Ticker
Timeframe
Exact Entry Price
Target Take Profit Price
Target Stop Loss Price
including warnings. alertcondition()
Trading & Exit Logic
1. BUY Setup
Trigger: Supertrend flips from Bearish (Red) to Bullish (Green).
Filter Condition: $\text{RSI} \le \text{Overbought Threshold}$ (or RSI Filter disabled).
Entry: Closing price of the signal bar.
Stop Loss: $\text{Entry} - (\text{ATR} \times \text{SL Multiplier})$
Take Profit: $\text{Entry} + (\text{ATR} \times \text{TP Multiplier})$
2. SELL Setup
Trigger: Supertrend flips from Bullish (Green) to Bearish (Red).
Filter Condition: $\text{RSI} \ge \text{Oversold Threshold}$ (or RSI Filter disabled).
Entry: Closing price of the signal bar.
Stop Loss: $\text{Entry} + (\text{ATR} \times \text{SL Multiplier})$
Take Profit: $\text{Entry} - (\text{ATR} \times \text{TP Multiplier})$
3. Exit & Removal Logic
On every historical and real-time bar, the script checks if or crosses the target levels: High Low
BUY Hit TP: $\text{High} \ge \text{TP Price}$
BUY Hit SL: $\text{Low} \le \text{SL Price}$
SELL Hit TP: $\text{Low} \le \text{TP Price}$
SELL Hit SL: $\text{High} \ge \text{SL Price}$
Upon trigger, the specific position is logged into the performance table, and its lines/labels are deleted.
Settings & Inputs
How to Set Up Dynamic Alerts
Apply the indicator to your desired chart.
Click the Alerts icon (Clock) on TradingView $\rightarrow$ Create Alert.
Under Condition, select: .Supertrend + RSI Filter (Advanced TP/SL)
Select Any alert() function call in the dropdown menu.
Set the frequency to Once Per Bar Close.
Click Create. You will receive detailed alerts formatted like this:
🚀 BUY SIGNAL
Symbol: BTCUSDT
Timeframe: 15
Entry: 64250.50
TP: 65120.00
SL: 63815.25
Risk Disclosure & Limitations
Choppy / Ranging Markets: As a trend-following tool, Supertrend may produce consecutive false breakouts when the market moves sideways.
Backtest Statistics Notice: The statistics table measures theoretical performance based on bar high/low historical data. It does not account for slippage, spread, overnight funding fees, or broker commissions.
Repainting Disclaimer: Signals and position calculations are confirmed on bar close ( / ) to strictly avoid repainting. barstate. islastfreq_once_per_bar_close
Financial Disclaimer: This script is developed strictly for educational and analytical purposes. It does not constitute financial or investment advice. Always manage your risk responsibly. อินดิเคเตอร์
Liquidity Heatmap 3D - Volume Density POC CVDLIQUIDITY HEATMAP 3D — the order-flow heatmap look, rebuilt for TradingView.
This indicator brings the volume-density heatmap visual to any TradingView chart, with a twist no other heatmap here has: a real 3D relief shader. Instead of flat colour tiles, every cell is lit by a virtual light source (emboss lighting computed in the colour math), and the strongest liquidity walls extrude as 3D blocks with shaded side faces and lit top caps.
━━━ HOW IT WORKS ━━━
TradingView provides no order book and no historical tick data, so this is an honest volume-density heatmap: each bar's volume is distributed across the price zones its range covered. Dense zones are the liquidity walls where the market actually spent volume. The engine normalises against the 85th percentile of the column maxima, so one hot spike never blanks out the rest of the map.
━━━ WHAT IS ON THE CHART ━━━
· Heatmap grid up to 22 x 28 zones, rebuilt live on every bar
· 3D RELIEF SHADER — emboss lighting, specular glints on the wall tops, adjustable strength
· 3D WALL EXTRUSION — the strongest cells pop out as shaded blocks (toggle)
· 7 PALETTES — GOLD 3D (default), TWILIGHT, FIRE & ICE (buy/sell split), OCEAN, INFERNO, EMERALD, MONO
· POC LINE — the highest-volume price of the window, with its volume readout
· WALL DETECTION — the two strongest active liquidity walls, labelled with their strength in percent
· VOLUME PROFILE — profile bars on the right, POC highlighted in gold
· TRADE BUBBLES — volume-spike bubbles sized by their ratio against the average, buy blue / sell magenta
· CVD STRIP — cumulative volume delta (bar proxy) along the bottom, mint and red
· COCKPIT PANEL — engine checklist, POC box and a BUY / SELL flow signal line
· Optional dark chart theme: navy background with mint / red bars
━━━ HOW TO USE IT ━━━
1. Watch the golden walls: price often reacts at dense volume zones — support and resistance built by traded volume rather than by drawn lines.
2. The POC is the fairest price of the window and acts as a mean-reversion magnet in ranges.
3. CVD rising while price holds a wall below it is an absorption long idea; CVD falling at a wall above is a distribution short idea.
4. Bubbles mark the bars where outsized volume hit. Combine them with wall touches for confluence.
━━━ SETTINGS ━━━
Grid size, bars per column, cutoff, gamma, tile transparency, relief strength, wall threshold and bubble threshold are all adjustable. Works on every symbol and timeframe; if a symbol carries no volume the engine falls back to time-at-price density and says so in the panel.
━━━ HONEST LIMITS ━━━
This is not level-2 order book data — TradingView does not provide it. The map shows where volume actually traded, not resting limit orders. The 3D effect is a rendering technique, not extra data.
━━━ NOTE ON LOADING ━━━
Right after adding the indicator, or after changing a setting, give it a few seconds: the engine creates its object pools and runs the first build. A brief flicker during that warm-up is normal and stops once the first refresh is done. After that the persistent engine updates in place with no flicker.
Open source — read it, change it, learn from it. This indicator is a study tool, not financial advice.
WHY THESE PARTS BELONG TOGETHER
The heatmap, the point of control and the cumulative delta strip are three views of one question:
where is volume sitting, which price is defending it, and who is doing the trading. The heatmap
shows the distribution, the point of control marks its centre of gravity, and the delta strip says
whether that distribution is being built by buyers or sellers. Read on their own each of the three
is ambiguous; read together they describe one order-flow picture.
อินดิเคเตอร์
Impulse Box Breakout Engine - Origin Range Buy Sell SignalsIMPULSE BOX BREAKOUT ENGINE — a complete breakout trading system in one indicator: self-adjusting impulse boxes with entry arrow, stop, two fixed targets, a pink trailing-stop dot line and webhook automation. Rebuilt 1:1 from a professional German "Impulsbox" breakout engine (72-minute source webinar, analyzed frame by frame) and redesigned as a modern cockpit indicator.
█ WHAT IT DOES
The engine meters the market N bars back: the range the market traded in PLUS the length of every single bar inside it (compression check). When a STRONG impulse bar closes outside that range, the IMPULSE BOX appears over the consolidation:
• CYAN BOX = long breakout — big entry arrow inside the box
• GOLD BOX = short breakout — mirrored to the downside
• Initial stop = the far side of the box (bottom for longs, top for shorts)
• TARGET 1 + TARGET 2 (violet marks) are projected from the box height the moment the box appears — FIXED, never repainted, never moved afterwards
• PINK DOTS = the trailing stop. It starts at the box edge and follows price with ~30% of the move as breathing room. It only ratchets in your favor — never back
• At Target 1 the stop jumps to break-even or better. After Target 2 the system follows the source rule: "never leave the market voluntarily — let the stop take you out"
█ SELF-OPTIMIZING ENGINE
Markets are sideways ~80% of the time — rigid breakout parameters fail there. This engine adapts automatically:
• TREND regime (ADX based): short lookback, wider targets (+35% / +100% of box height)
• RANGE regime: longer lookback, stricter impulse filter, closer targets (+25% / +75%)
• AUTO-RECALIBRATION: after a false breakout the impulse threshold is raised temporarily — fewer but cleaner boxes. A winning box resets it
• The cockpit shows the current regime, calibration and effective parameters at all times
█ HONEST LIVE STATISTICS
The cockpit counts every box on your chart and shows the real Target-1 and Target-2 hit rates — no marketing numbers, live counted on your symbol and timeframe. On XAUUSD 15m the default engine printed 500+ boxes with a T1 hit rate above 90% at the time of publishing (past performance never guarantees future results).
█ DIRECTION BIAS FILTER
The #1 rule of the source system: trade boxes only in the direction of the higher-level move. The indicator automates this via EMA-200 + Supertrend bias. Choose: Off / Mark counter-bias boxes (dimmed + warning) / Filter them out completely. Supertrend companion arrows are included as extra confluence.
█ EVERY SIGNAL EXPLAINS ITSELF
Hover any BUY/SELL pill: how many bars of consolidation, how strong the impulse bar was (x average bar), which range edge broke, which regime the engine was in, whether the box agrees with the bias — plus entry, stop and both targets. No black box.
█ WEBHOOK AUTOMATION (BOTS / BRIDGES)
Create ONE alert with "Any alert() function call" and your webhook URL. The indicator fires ready-to-use JSON on BUY, SELL, T1_HIT, T2_HIT, TRAIL_EXIT and SL_HIT — including entry, stop, both targets, box levels, regime and live hit rates. Works with any webhook bridge, bot or auto-trader.
█ HOW TO USE
1) Add to chart — works on ALL symbols and ALL timeframes (crypto, gold, forex, indices, stocks)
2) Use standard candles or OHLC bars (Heikin-Ashi smoothing swallows breakouts — a key finding of the source webinar)
3) Wait for a box + arrow, entry at the breakout close, stop at the far box edge
4) Take partial profit at Target 1, let the rest run with the pink trailing dots
5) Automate via webhook JSON if you want
█ SETTINGS
Everything is configurable: manual mode with fixed lookback/impulse strength, target distances, trailing gap, exit-at-T2 mode, bias filter mode, Supertrend, chart theme, cockpit position and all alert toggles.
Educational tool only — not financial advice. Trading involves substantial risk. Always test on a demo account first and never risk money you cannot afford to lose.
WHY THESE PARTS BELONG TOGETHER
The impulse detection and the box are one mechanism, not two features. The impulse identifies the
candle sequence that moved the market; the box freezes the range that impulse came out of, because
that range is the level the market has to defend for the move to continue. Detecting impulses
without marking their origin gives you a signal with no invalidation, and drawing boxes without an
impulse gives you consolidation zones with no direction.
อินดิเคเตอร์
Opening Range Breakout Engine - Session Range SignalsaDESCRIPTION:
RANGE BREAKOUT PRO is a complete range-breakout trading engine: it detects tradeable ranges from confirmed swing pivots, fires BUY and SELL signals when price breaks out in the direction of the trend, and then manages every trade on the chart with entry, stop loss, take profit, break-even and trailing logic - all fully visualized and fully automatable via webhook alerts.
HOW THE ENGINE WORKS
1. RANGE DETECTION - Confirmed swing highs and swing lows (pivot length configurable) become the active RANGE HIGH and RANGE LOW. Each extreme is marked on the chart with a dot and a vertical marker line. A range must be wide enough (minimum height in ATR) and fresh enough (maximum age in bars) to be tradeable - micro-ranges and stale levels are skipped automatically.
2. BREAKOUT SIGNAL - A signal fires only when a candle CLOSES beyond the range extreme plus an ATR buffer (no wick fake-outs), the gradient trend ribbon points in the breakout direction, the trend strength score clears your Buy/Sell Strength threshold, the breakout is not overextended (max distance from the ribbon in ATR - no chasing exhausted moves), and an optional cooldown after a losing trade has expired. Optional MTF Agreement requires the 15-minute trend to confirm.
3. TRADE MANAGEMENT - Every signal is managed like a real trade, live on the chart:
- TP1 (partial target) banks the win early and moves the stop to break-even
- the remainder runs to the full R-multiple take profit or a chandelier trail
- green TP box and red SL box grow bar by bar from the entry, exactly like a position tool
- price tags at the right edge show Entry, Stop Loss, Take Profit and live Profit/Loss %
- every closed trade is marked with a tick (win), circle (break-even) or cross (loss)
4. TWO TRADE MODES - "TP/SL Mode" (fixed targets, split TP1 + runner) or "Trailing Mode" (no fixed target, the trail line is the moving stop).
THE COCKPIT PANEL
- MARKET OVERVIEW: multi-timeframe trend dashboard - live trend strength meters for the chart timeframe, 15m, 1H, 4H and 1D
- SIGNAL SETUP: entry system, MTF agreement, current signal (Long / Flat / Short), Buy/Sell strength thresholds, trend filter state, trade mode, active Take Profit and Stop Loss levels
- PERFORMANCE: asset, exchange, timeframe, total trades and live win rate calculated from every signal on the chart history - no cherry picking, the counter runs over everything the engine fired
Win rate accounting is transparent: a trade counts as WIN when TP1 is banked, as LOSS when the initial stop is hit first, and break-even exits are tracked separately - the same split-target accounting professional scalpers use.
WHY-EXPLANATIONS ON THE CHART
Every BUY/SELL pill carries a tooltip that explains WHY the signal fired: which range level broke, the trend strength at the trigger, entry, stop and target prices. Range dots explain the level they mark. Nothing is a black box.
WEBHOOK AUTOMATION
Create one alert with condition "Any alert() function call" and paste your webhook URL. The indicator sends ready-to-use JSON for every event: BUY, SELL, TP_HIT, SL_HIT, TRAIL_EXIT, BE_EXIT - including symbol, price, stop, target, trade mode, win rate and timeframe. Connect it to any bridge or bot and the strategy runs hands-free.
WORKS ON
Any symbol and timeframe: indices (NASDAQ, S&P, DAX), gold and forex, crypto, stocks. Scalping on 1-5 minute charts, day trading on 15m-1H, swing trading on 4H-Daily. Defaults are tuned for intraday breakout scalping.
DISCLAIMER
This indicator is a technical analysis tool, not financial advice. Past win rates do not guarantee future results. Always test on a demo account first and manage your risk.
WHY THESE PARTS BELONG TOGETHER
An opening range on its own produces a break in both directions on most days. The session filter
and the range-quality measurement exist to decide which of those breaks is tradeable: the session
defines when the range is allowed to form, and the quality measurement rejects ranges that are too
wide or too thin to hold. The breakout level is only meaningful once both have passed.
อินดิเคเตอร์
TL Space Concept Pro - Three Finger Spread Breakout EngineSPACE CONCEPT PRO - THE THREE-FINGER SPREAD ENGINE
Some of the most consistent discretionary traders never look at a chart without two moving averages on it: the 20 SMA and the 200 SMA. Add price itself and you have THREE ITEMS - three "fingers". The distance between them is called SPACE, and space tells you when a market is about to explode and when a move is about to die. This indicator turns that entire concept into a fully mechanical engine with signals, trade management and webhook automation.
=== THE CONCEPT ===
THE THREE ITEMS
1. Price
2. The 20 period simple moving average
3. The 200 period simple moving average
NARROW STATE - all three items clustered together. The market has reset itself. An explosive move is loading, direction unknown. You do not need to predict it: you simply wait for the biggest bar to emerge.
SPACE ZONE 1 - the space between the 20 SMA and the 200 SMA.
SPACE ZONE 2 - price accelerating away from the 20 SMA. Sometimes the underlying moves faster than the moving average can keep up, creating a second layer of space.
DUAL SPACE / THREE-FINGER SPREAD - both zones open at the same time, all three fingers clearly separated and stacked in order. This is where moves get exhausted.
THE RAILROAD RULE - if price runs parallel to the 20 SMA like railroad tracks, that is NOT a spread. Price has to ACCELERATE away from the moving average. The engine checks this automatically.
THE WIDEST SPREAD - the widest three-finger spread of the lookback window finds you the temporary top or bottom 8 to 9 times out of 10. When it prints, the reversal watch arms and the extreme that must hold is marked on the chart.
NARROW TO NARROW - when the spread collapses from the widest state back to narrow WITHOUT breaking the extreme, the next direction is the reversal. Confirmed by a power bar: a three-finger spread reversing with a power bar is the creme de la creme of this method.
=== THE SIGNALS ===
1. BREAKOUT - power bar (biggest bar of the window) exploding out of a narrow state. Entry inside the bar, stop beyond the bar.
2. SPREAD REVERSAL - widest spread found the extreme, spread collapsed back toward narrow without breaking it, power bar confirms. Target follows the 50 percent rule.
3. EARLY REVERSAL - first strong color change directly at the widest spread (the bottoming tail bar play). Stop beyond the extreme.
4. TAIL BAR - optional: bottoming/topping tail bars near narrow states as early entries (markers by default).
Every signal prints as a two-line pill with the setup name, and every pill carries a WHY tooltip that explains the exact chain of logic behind the trade - plus entry, stop, target and R:R.
=== TRADE MANAGEMENT (AS TAUGHT) ===
- ADD on the first color change after entry ("always adding on the first color change")
- TP at the 50 percent mark of the move - the pros are satisfied with the halfway mark, do not get greedy
- After the partial: bar-by-bar trailing stop until the market takes you out
- Hard stop beyond the power bar / spread extreme with an ATR buffer
- Full position box and live status in the cockpit panel
=== THE COCKPIT ===
An animated terminal-style panel shows everything at a glance:
- Animated 3D gold pixel logo with a moving light sweep (live ticks)
- State chip: NARROW STATE / 3-FINGER SPREAD / WIDEST SPREAD / REVERSAL WATCH
- Spread rank 0-100 plus live ZONE 1 / ZONE 2 meter bars in ATR
- 7-step SPACE CHECKLIST mirroring the method: items stacked, zone 1, zone 2, acceleration (railroad filter), widest-spread watch, power bar, management
- Position box, big signal line, spread/reset/signal counters
On the chart: shaded zone 1 and zone 2 fills, narrow-state boxes, MARKET RESET tags, 3-FINGER SPREAD labels, gold WIDEST SPREAD stars with vertical measuring lines (exactly how it is drawn when taught), the must-hold extreme line, TAIL tags and lightning power-bar markers. Everything is explained on the chart - hover any label for the reasoning.
=== AUTOMATION / WEBHOOK ===
Create ONE alert with condition "Any alert() function call" and paste your webhook URL. The indicator sends ready-to-use JSON for every event:
{"id":"TL-SPACE-CONCEPT","symbol":"BTCUSD","action":"BUY","setup":"BREAKOUT","price":64100.5,"sl":63900.0,"tp":64500.0,"tf":"15","time":"2026-07-18 16:30"}
Actions: BUY, SELL, ADD, TP_50, TRAIL_EXIT, SL_HIT, NARROW_STATE, WIDEST_SPREAD. Classic alertconditions for BUY / SELL / Narrow State / Widest Spread are included as well.
=== SELF-CALIBRATING ===
The spread is ranked against its own history (percentile engine) and all distances are measured in ATR - so the indicator works out of the box on any market (crypto, forex, gold, indices, stocks, futures) and any timeframe from 1 minute to weekly. Practice finding three-finger spreads everywhere - that is the homework.
=== SETTINGS ===
Every input is documented with a tooltip quoting the original rule it implements. Adjust the narrow/wide percentiles, power-bar size, dual-space minimum, acceleration window, 50 percent rule targets and the SL buffer to fit your market and style.
=== DISCLAIMER ===
Educational tool, not financial advice. No indicator wins every trade - prepare for the 1-2 times out of 10 the concept is wrong: keep your risk unit small compared to your profit unit. That is how you stay in business.
อินดิเคเตอร์
อินดิเคเตอร์
